Background and Introduction
The conveyance of clinical trial explorations and analysis results from a statistician to a clinical investigator is an often overlooked but critical component to the drug development and clinical research cycle. Graphs, tables, and other analysis artifacts are at the nexus of these collaborations. They facilitate identifying problems and bugs in the data preparation and processing stage, they help to build an intuitive understanding of mechanisms of disease and their treatment, they elucidate prognostic and predictive relationships, they provide insight that results in new hypotheses, and they convince researchers of analyses testing hypotheses.
Despite their importance, the process of generating these artifacts is usually done in an ad-hoc manner. This is partially because of the nuance and diversity of the hypotheses and scientific questions being interrogated and, to a lesser degree, the variation in clinical data formatting. The usual process usually has a statistician providing a standard set of artifacts, receiving feedback, and providing updates based on feedback. Work performed for one trial is rarely leveraged on others, and as a result, a large amount of work needs to be reproduced for each trial.
There are two glaring problems with this approach. First, each analysis of a trial requires a substantial amount of error-prone work. While the variation between trials means some work needs to be done for preparation, exploration, and analysis, many aspects of these trials could be better automated resulting in greater efficiency and accuracy. Second, because this work is challenging, it often occupies the majority of the statisticians’ effort. Less time is spent on trial design and analysis, and then this portion is taken up by a clinician who often has less expertise with the statistical aspects of the trial. As a result, the extra effort spent on processing data undermines statisticians’ role as a collaborator and relegates them to service provider. Need tools leveraging existing work to more efficiently provide holistic views on trials will result in less effort and more accurate and comprehensive trial design and analysis.
The richness of the R Core Team (2012) package ecosystem, particularly with its emphasis on analysis, visualization, reproducibility, and dissemination makes the goal of creating these tools for clinical trials feasible. Generation of tables is supported by packages including tableone (Yoshida and Bartel 2020), gt (Iannone et al. 2020), gtsummary (Sjoberg et al. 2020). Visualization is achieved using package including ggplot2 (Wickham 2016) and survminer (Kassambara et al. 2020). We can even provide interactive presentations of data with DT (Xie et al. 2020), plotly (Sievert 2020), and trelliscopejs (Hafen and Schloerke 2020).
It should also be realized that work building on these tools for clinical trial data is already in process. The greport (Harrell Jr 2020) package provides graphical summaries for clinical trials and has been used in conjunction with rmarkdown (Allaire et al. 2020) to produce specific trial report types with a specified format.
Using listdown for programmatic, collaborative clinical trial document generation
The listdown package (Kane et al. 2020) was recently released to automate the process of generating reproducible (RMarkdown) documents. Objects derived from a summary, exploration, or analysis are stored hierarchically in an R list, which defines the structure of the document. These objects are referred to as computational components since they are derived from computation, as opposed to prose, which makes up the narrative components of a document.
The computational components capture and structure the objects to be presented. Describing how the objects will be presented and how the document will be rendered is handled through the creation of a listdown object. The separation between how computational components are created and how they are shown to a user provides two advantages. First, it decouples the data processing and analysis from its exploration and visualization. For compute-intensive analyses, this separation is critical for avoiding redundant computations for small changes in the presentation. It also discourages putting compute-intensive code into RMarkdown documents. Second, it provides the flexibility to quickly change how a computational component is visualized or summarized or even how a document is rendered. This makes transitioning from an interactive .html document to a static .pdf document significantly easier than substituting functions and parameters in an R Markdown document.
The package has been found to be particularly useful in the reporting and research of clinical trial data. In particular, the package has been used for server collaborations focusing on either the analysis of past trial data to formulate a new trial or in trial monitoring where trial telemetry (enrollment, responses, etc.) is reported, and initial analyses are conveyed to a clinician. The associated presentations require very little context since clinicians often have as good an understanding of the data collected as that of the statistician’s meaning narrative components are not needed. At the same time, a large number of hierarchical, heterogeneous artifacts (tables and multiple types of plots) can be automated where manual creation of RMarkdown documents would be inconvenient and inefficient.
The rest of this document describes concepts implemented in the listdown package for automated, reproducible document generation and shows its use with a simplified, synthetic clinical trial data set whose variables are typical of a non-small cell lung cancer trial. The data set comes from the forceps (Kane 2020) package. As of the time this document was written, the package is under development and is not available on CRAN. However, it can be installed as follows.
devtools::install_github("kaneplusplus/forceps")
The following section uses the trial data to construct a pipeline for document generation. We note that both the data and the pipeline are simple when compared to most analyses of this type. However, it is sufficient to illustrate accompanying concepts, and both the analyses and concepts translate readily to real-world applications. A final section discusses the use of the package and its current direction.
Constructing a pipeline for document generation
The process of analyzing data can be described using the classic waterfall model of Benington (1983) where the output (the analysis presentation or service) is dependent on a sequence of tasks that come before it. This dependency structure means that if a problem is detected in a given stage of the production of the analysis, all downstream parts must be rerun to reflect the change. A graphical depiction of the waterfall model, specific to data analyses (clinical or otherwise) is shown in Figure 1. Note that data exploration and visualization are an integral part of all stages of the production and are often the means for identifying issues and refining analyses.

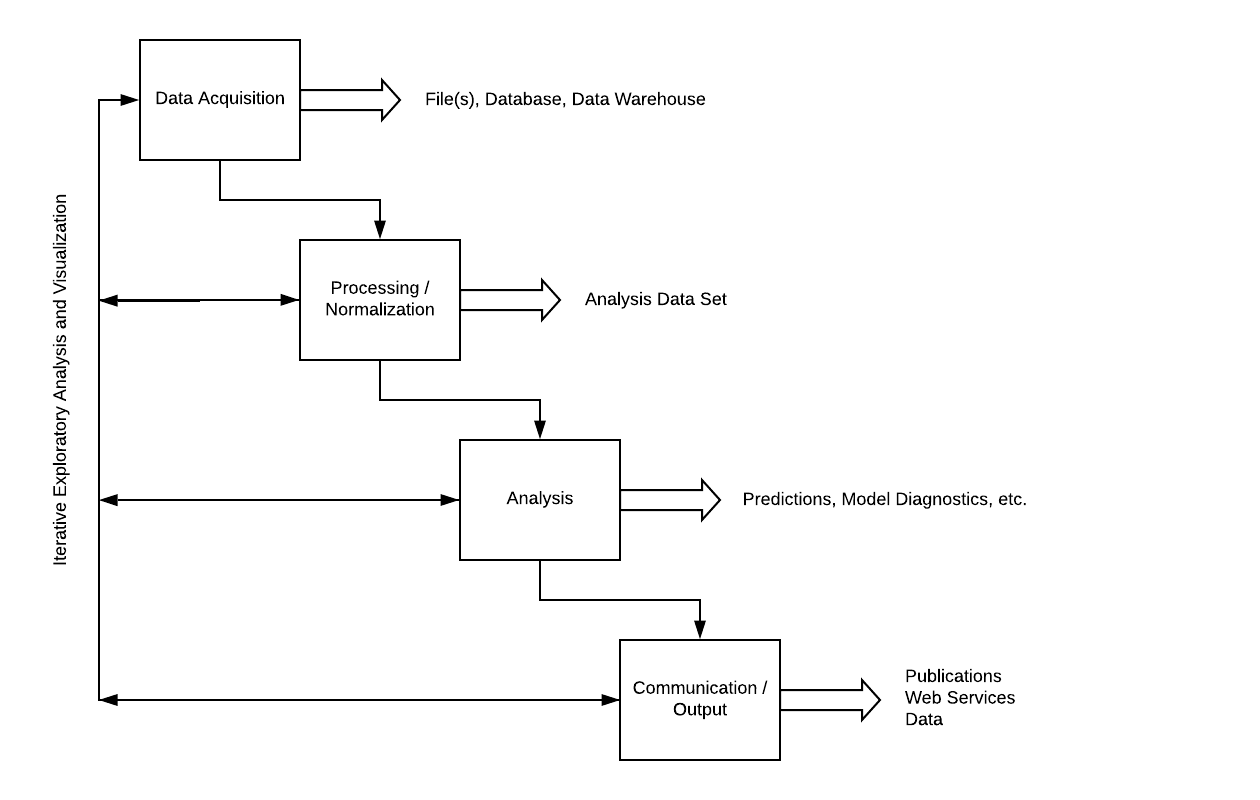

Figure 1: The data analysis waterfall.
As explained in the previous section, we are going to implement a simple analysis pipeline. The data acquisition and preprocessing steps are handled by importing data sets from the forceps package and using some of the functions implemented in the package to create a single trial data set, thereby de-emphasizing these components in the pipeline. While these steps are critical, the emphasis of this paper is the incorporation of the listdown package into the later stages.
Data acquisision and preprocessing
Data acquisition refers to the portion of the analysis pipeline where the data is retrieved from some managed data store for integration into the pipeline. These data sets may be retrieved as tables from a database, case reports, Analysis Data Model (ADaM) data formatted according to the Clinical Data Interchange Standards Consortium (CDISC) (Clinical data interchange standards consortium 2020), Electronic Health Records, or other clinical Real World Data (RWD) formats. These data are then transformed to a format appropriate for analysis.
In our simple example, this is accomplished by loading data corresponding to trial outcomes, patient adverse events, patient biomarkers, and patient demography and transforming them into a single data set with one row per patient and one variable per column using the forceps and dplyr (Wickham et al. 2020) packages. The data also includes longitudinal adverse event information, which will is stored as a nested data frame in the ae_long column of the resulting data set.
library(forceps)
library(dplyr)
data(lc_adsl, lc_adverse_events, lc_biomarkers, lc_demography)
lc_trial <- consolidate(
list(adsl = lc_adsl,
adverse_events = lc_adverse_events %>%
cohort(on = "usubjid", name = "ae_long"),
biomarkers = lc_biomarkers,
demography = lc_demography %>%
select(-chemo_stop)
),
on = "usubjid")
lc_trial
# A tibble: 558 × 18
usubjid best_response pfs_d…¹ pfs_c…² os_days os_ce…³ chemo…⁴ arm
<dbl> <chr> <dbl> <dbl> <dbl> <dbl> <chr> <chr>
1 1003 Stable Disea… 101 1 233 1 advers… stan…
2 1005 Complete Res… 78 0 184 1 advers… stan…
3 1006 Progressive … 253 1 333 1 treatm… stan…
4 1009 Partial Resp… 130 0 643 0 <NA> trea…
5 1014 Complete Res… 41 1 116 1 advers… trea…
6 1018 Partial Resp… 194 1 423 1 treatm… stan…
7 1023 Stable Disea… 49 1 337 1 advers… stan…
8 1025 Stable Disea… 95 1 589 1 advers… stan…
9 1030 Complete Res… 351 1 688 1 advers… stan…
10 1033 Complete Res… 33 1 125 1 treatm… stan…
# … with 548 more rows, 10 more variables: ae_count <int>,
# ae_long <list>, egfr_mutation <chr>, smoking <chr>, ecog <chr>,
# prior_resp <chr>, site_id <int>, sex <chr>, refractory <lgl>,
# age <dbl>, and abbreviated variable names ¹pfs_days, ²pfs_censor,
# ³os_censor, ⁴chemo_stop
# ℹ Use `print(n = ...)` to see more rows, and `colnames()` to see all variable namesAnalysis defining and structuring the computational components
The next step is to define the computational components as a hierarchical, named list of objects that will be presented. These objects are generally derived from the exploratory, descriptive, and analysis stages and are presented as visualizations and tables. This example will focus on the exploratory and descriptive portions. We will start by defining a new function class_and_tag(), which takes an object and prepends a class designation to the objects along with optionally associating the object with a set of attributes. This extra information will be used later in order to dispatch to the proper functions responsible for presenting the objects in a resulting R Markdown document. If no such information is given, then the object will be presented as it usually would in the document. It should also be noted that class_and_tag() is provided for convenience here and will be available in subsequent package versions.
The next step is to define the computational components that will be presented. Our simple example will contain three sections: Outcome Information, Adverse Events, Biomarkers. The Adverse Events and Biomarkers sections will each show summary tables of one of the variables from those data. The Outcome Information section will be composed of two subsections, with the first (Best Response) providing a summary of the best response by the arm and the second (Overall Survival) showing a survival plot by arm of the overall survival. The call to ld_cc_dendro() at the end of the example provides of dendrogram of the hierarchical structure.
library(listdown)
trial_summary <- list(
`Outcome Information` = list(
`Best Response` = lc_trial %>%
select(best_response, arm) %>%
class_and_tag("summary_table", by = "arm"),
`Overall Survival` = lc_trial %>%
select(os_days, os_censor, arm) %>%
class_and_tag("survival_plot",
time = "os_days",
censor = "os_censor",
x = "arm")),
`Adverse Events` = lc_trial %>%
select(best_response) %>%
class_and_tag("summary_table"),
`Biomarkers` = list(
`EGFR` = lc_trial %>%
select(egfr_mutation) %>%
class_and_tag("summary_table")
)
)
ld_cc_dendro(trial_summary)
trial_summary
|-- Outcome Information
|-- Best Response
| o-- object of type(s):summary_table tbl_df tbl data.frame
o-- Overall Survival
o-- object of type(s):survival_plot tbl_df tbl data.frame
|-- Adverse Events
| o-- object of type(s):summary_table tbl_df tbl data.frame
o-- Biomarkers
o-- EGFR
o-- object of type(s):summary_table tbl_df tbl data.frameCommunicating results
The objects have been constructed and they have been structured. The next step is to define how they will be presented. This is done by creating two functions make_summary and make_survival_plot. The former takes a data.frame and uses the gtsummary package to summarize the results. If the data.frame includes an attribute named by and denoting a valid variable in the data set, then the summary is created conditionally on that variable. The latter function also takes a data.frame and uses attributes to denote variables on which a Kaplan-Meier plot can be constructed using the survival (Terry M. Therneau and Patricia M. Grambsch 2000) and survminer packages. The functions are written to a file called decorators.r and will be used by the R Markdown document to render the final document.
library(gtsummary)
library(survival)
library(survminer)
library(dplyr)
make_summary <- function(x) {
by <- attributes(x)$by
tbl_summary(x, by = by)
}
make_survival_plot <- function(.x) {
att <- attributes(.x)
x <- ifelse(is.null(att$x), "1", att$x)
form <- sprintf("Surv(%s, %s) ~ %s", att$time, att$censor, x) %>%
as.formula()
fit <- surv_fit(form, data = as.data.frame(.x))
ggsurvplot(fit, data = as.data.frame(.x))
}
The next step is to connect the computational components to the functions that will present them using the listdown() function. First, the computational components are stored in the trial_summary object are written to the disk. The resulting R Markdown document will read it in based on the load_cc_expr argument. Along with reading in the data, initialization in the R Markdown document will include sourcing the decorators.r file previously written to disk. This is handled with the init_expr argument. The decorators argument takes a list where the name specifies the class and the list element corresponds to a function that will present objects of the specified class. For example, summary_table objects are sent to the make_summary() function for presentation. This allows us to connect objects to their appropriate function to process and present them. Finally, echo and message chunk options are set to FALSE so that the code and associated messages will not appear in the final rendered document. The last line of code below displays the first 12 lines of R Markdown code chunks as they will appear in the corresponding document.
saveRDS(trial_summary, "cc.rds")
ld <- listdown(load_cc_expr = readRDS("cc.rds"),
init_expr = source("decorators.r"),
decorator = list(summary_table = make_summary,
survival_plot = make_survival_plot),
echo = FALSE,
message = FALSE)
ld_make_chunks(ld)[1:12]
[1] ""
[2] "```{r echo = FALSE, message = FALSE}"
[3] "source(\"decorators.r\")"
[4] ""
[5] "cc_list <- readRDS(\"cc.rds\")"
[6] "```"
[7] ""
[8] "# Outcome Information"
[9] ""
[10] "## Best Response"
[11] ""
[12] "```{r echo = FALSE, message = FALSE}"The last step creates the R Markdown header, writes it along with the R code chunks to a file named "simple-data-trial-summary.rmd" and knits the file with the knitr package (Xie 2020) to a pdf document, per the output argument of the ld_rmarkdown_header() function. md_header is a yml object making it easy to control how the document is rendered. The code to generate the document along with the resulting R Markdown and output file constitute a reproducible workflow that can be quickly iterated upon and adapted for different types of explorations, summaries, and analyses.
library(knitr)
md_header <- ld_rmarkdown_header("Fake Data Trial Summary",
output = "pdf_document")
ld_write_file(
rmd_header = as.character(md_header),
ld = ld_make_chunks(ld),
file_name = "simple-data-trial-summary.rmd")
knit("simple-data-trial-summary.rmd")
Direction
The listdown package has been successfully used for collaborations on several clinical trial analyses. The package works particularly well when creating large, navigable sets of summaries and visualizations. Current work focuses on two areas. First is the construction of standard decorators. By packaging decorators and associated functionality, presentations can be made rich as they are developed over time. This standardization also makes it easier to leverage work in configuring chunks so that they can be made more aesthetic by default. In addition, we have been working on abstract and formalize the notion of document composition. In the example presented, the aggregation of the header and R code chunks into a file was sufficient for generating a document. However, the composition of other outputs is also supported. For example, the top-level names of the trial summary could just as easily designate tabs on a web page or other target. The notion of a composer would allow a user to target a greater variety of output types, better suiting the application under consideration and the target audience for the presentation.
Supplementary materials
Supplementary materials are available in addition to this article. It can be downloaded at RJ-2021-051.zip
